Name: PortBin ShoreCleaner
Brand: PortBin

PortBin collects floating litter in ports, captures what drifts with the current in rivers and vacuums up the smallest debris along shorelines.

PortBin × Ægir

Swedish reseller of PortBin

PortBin is developed by SpillTech in Norway and sold through partners in more than 20 countries. We sell, install and service PortBin in Sweden.

01Ports and marinas

PortBin Tide

Specifications

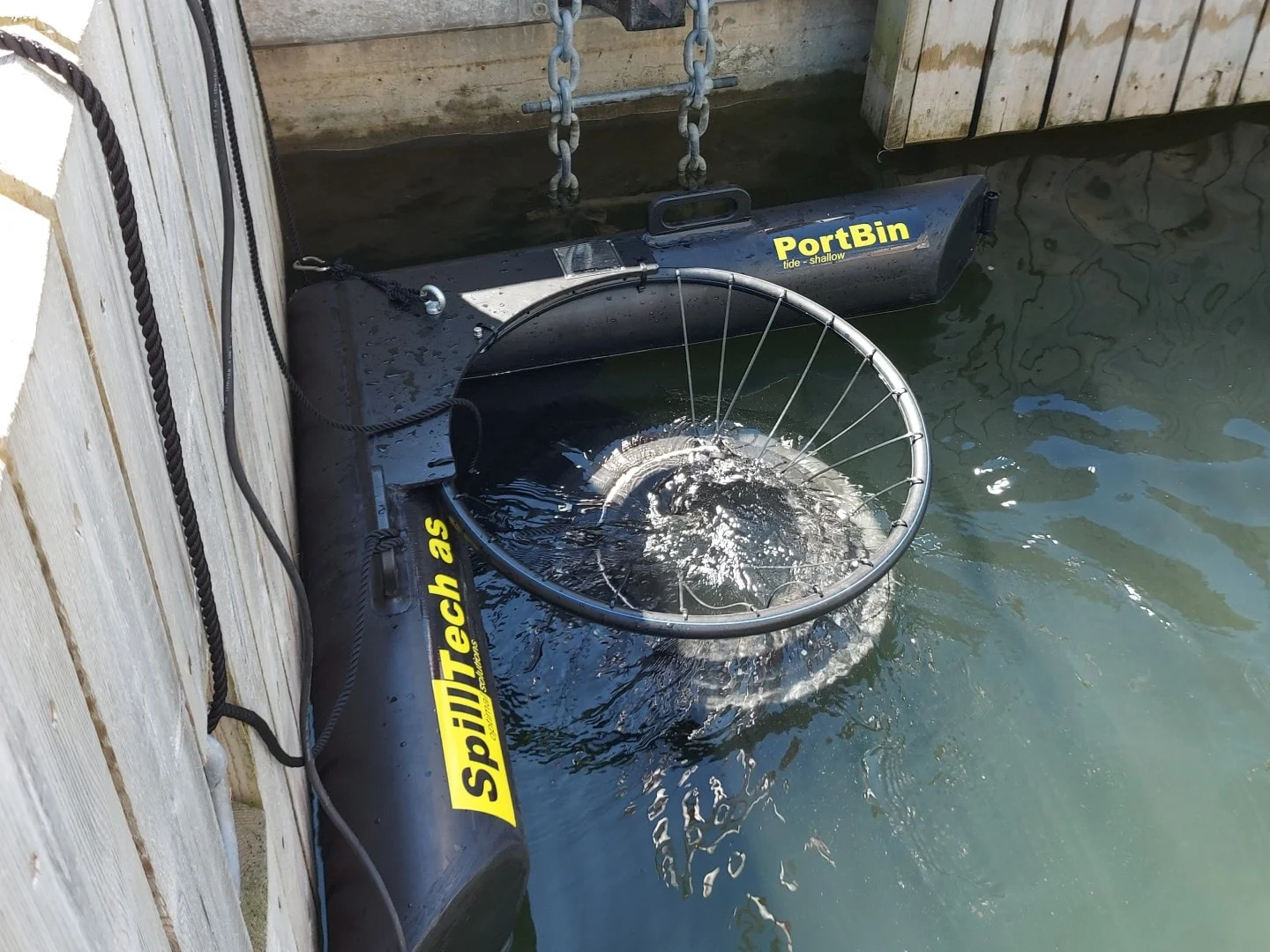

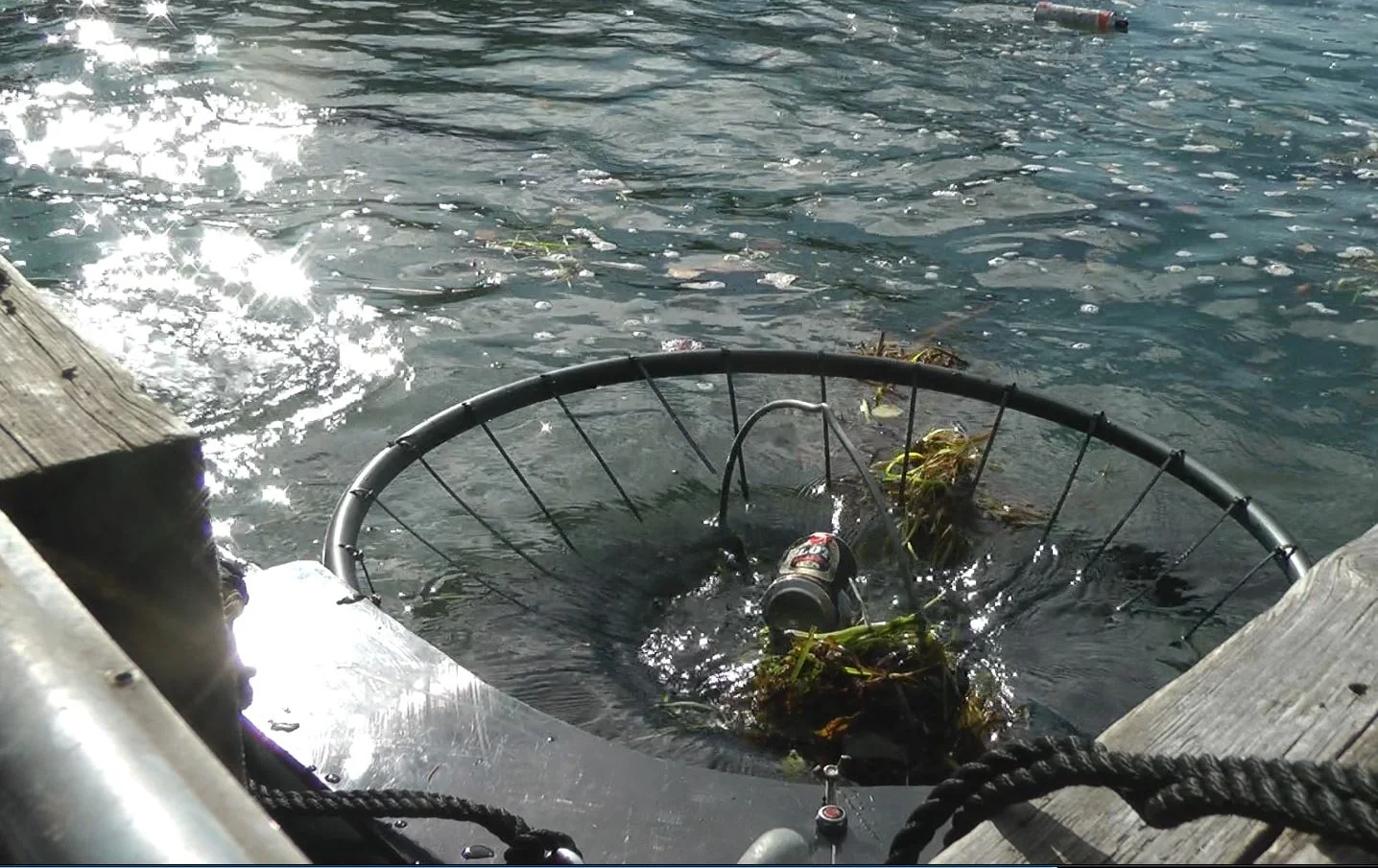

PortBin Tide draws floating litter through the unit with a suction flow and traps it in a detachable bin, without harming aquatic life. It floats on its own, moves with the tide and needs no fixed mounting. Moor it, connect power and start it up.

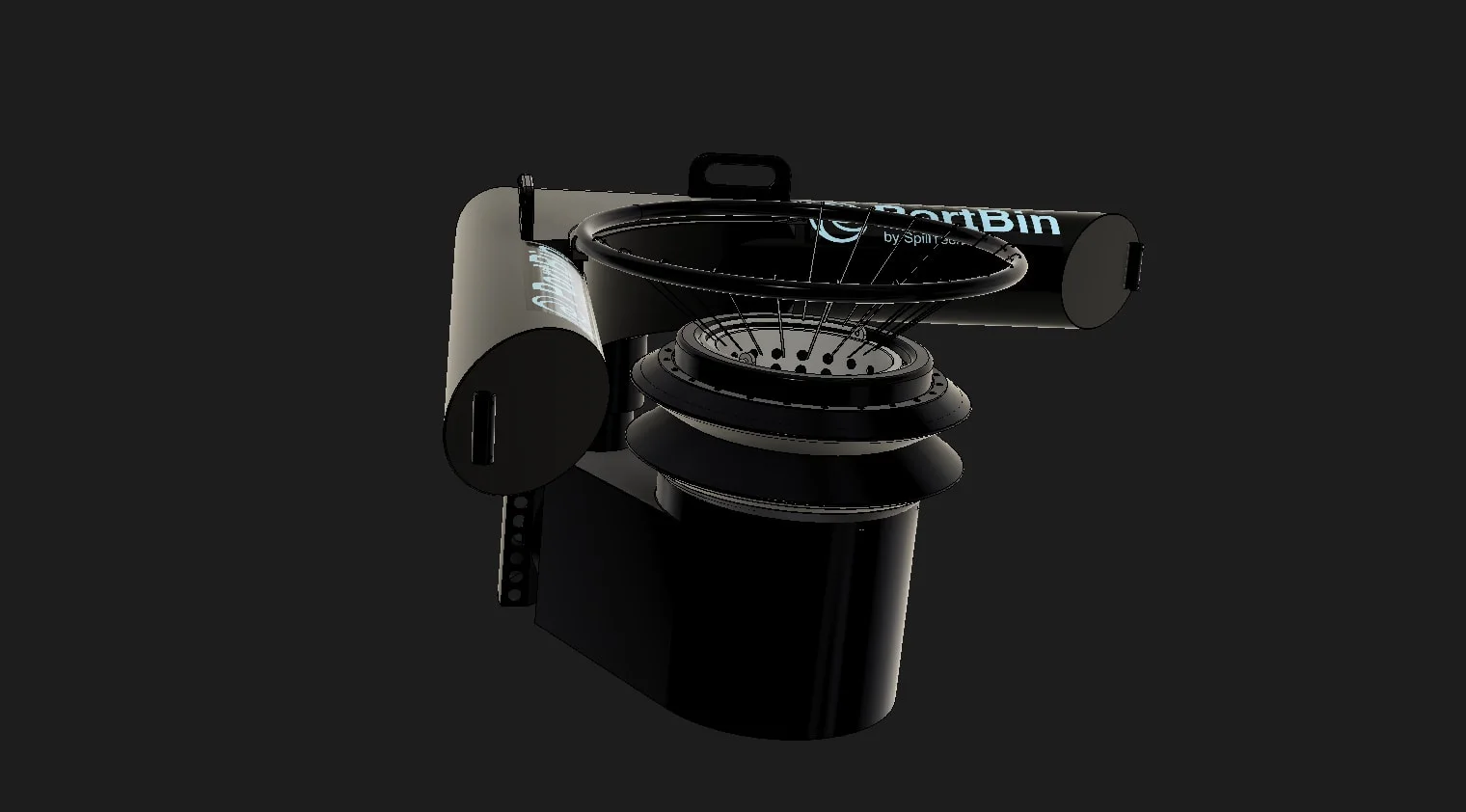

Tide v2

A 30-litre bin that anyone can empty by hand. Lighter and lower than earlier versions.

Size (L×W×H): 1500 × 1500 × 800 mm
Weight: 42 kg
Capacity: 30 L

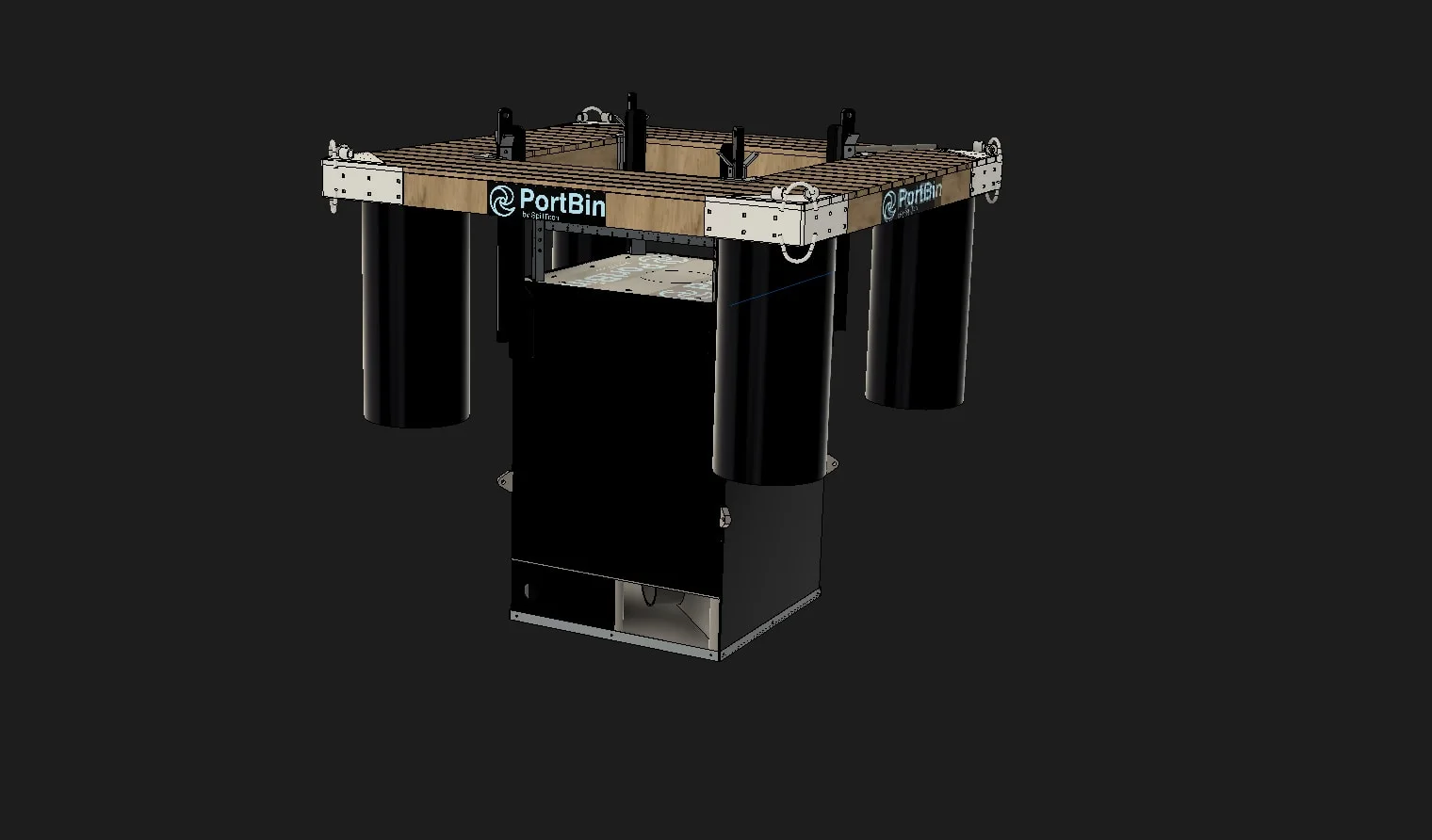

Tide XL

The largest unit, for sites with a lot of floating litter. Emptied with mechanical equipment.

Size (L×W×H): 2400 × 2400 × 2200 mm
Weight: 615 kg
Capacity: 1000 L

02Rivers

PortBin TrashTrawl

Specifications

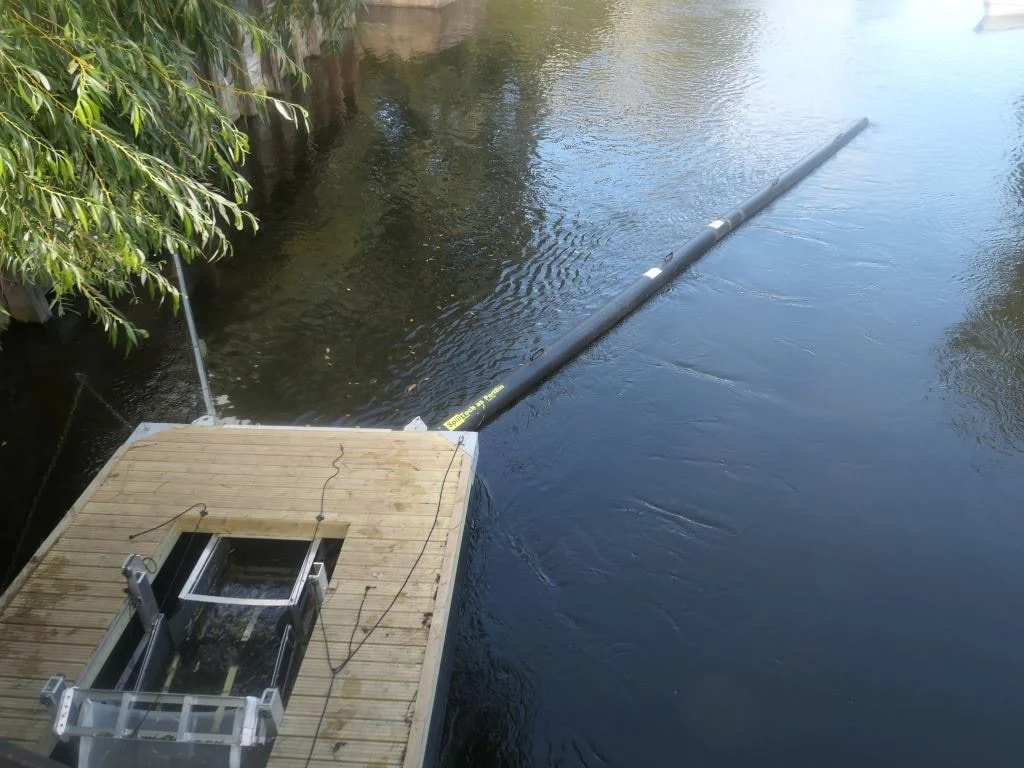

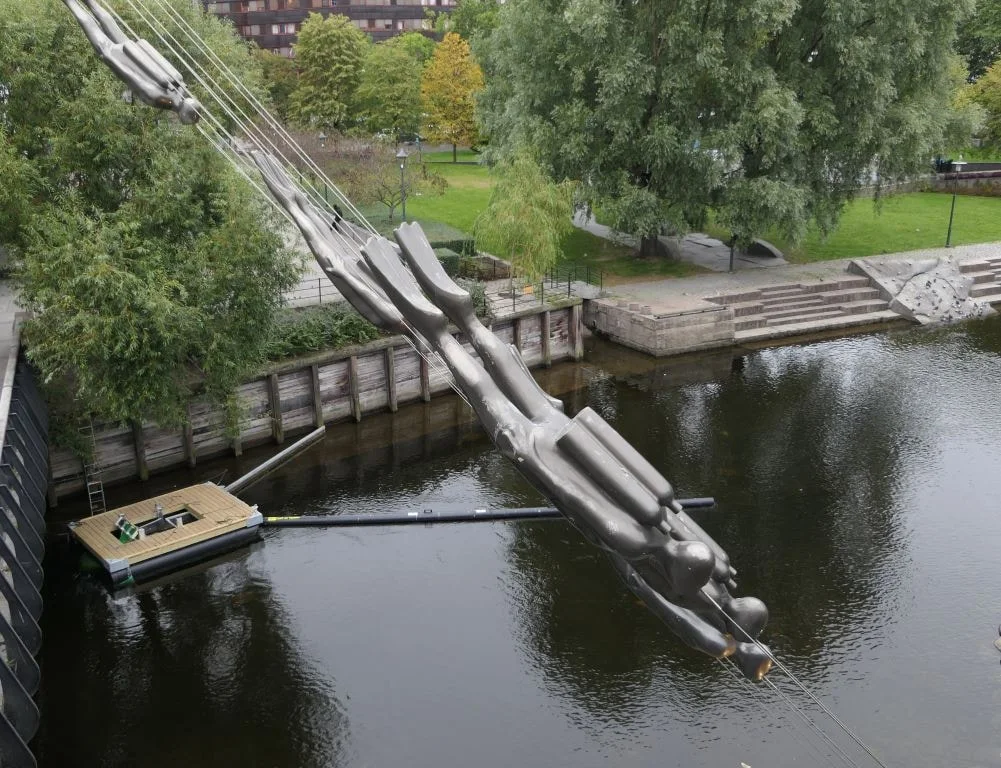

TrashTrawl builds on the principles of oil spill booms. High-speed booms guide litter into a collector with a 1000-litre mesh sack. It is powered by the current, needs no electricity, does not interfere with boat traffic and is adapted to the river where it is installed. In the Akerselva river in Oslo it collects more than 54,000 items a year.

TrashTrawl

Modular booms that adapt to the river’s width and handle large changes in water level. The only maintenance is emptying the net with a small crane.

Current speed: 0–3 knots (1.5 m/s)
Mesh sack: 1000 L
Material: Recycled PEHD
Result, Akerselva: 54,000+ items/year

03Shorelines and urban areas

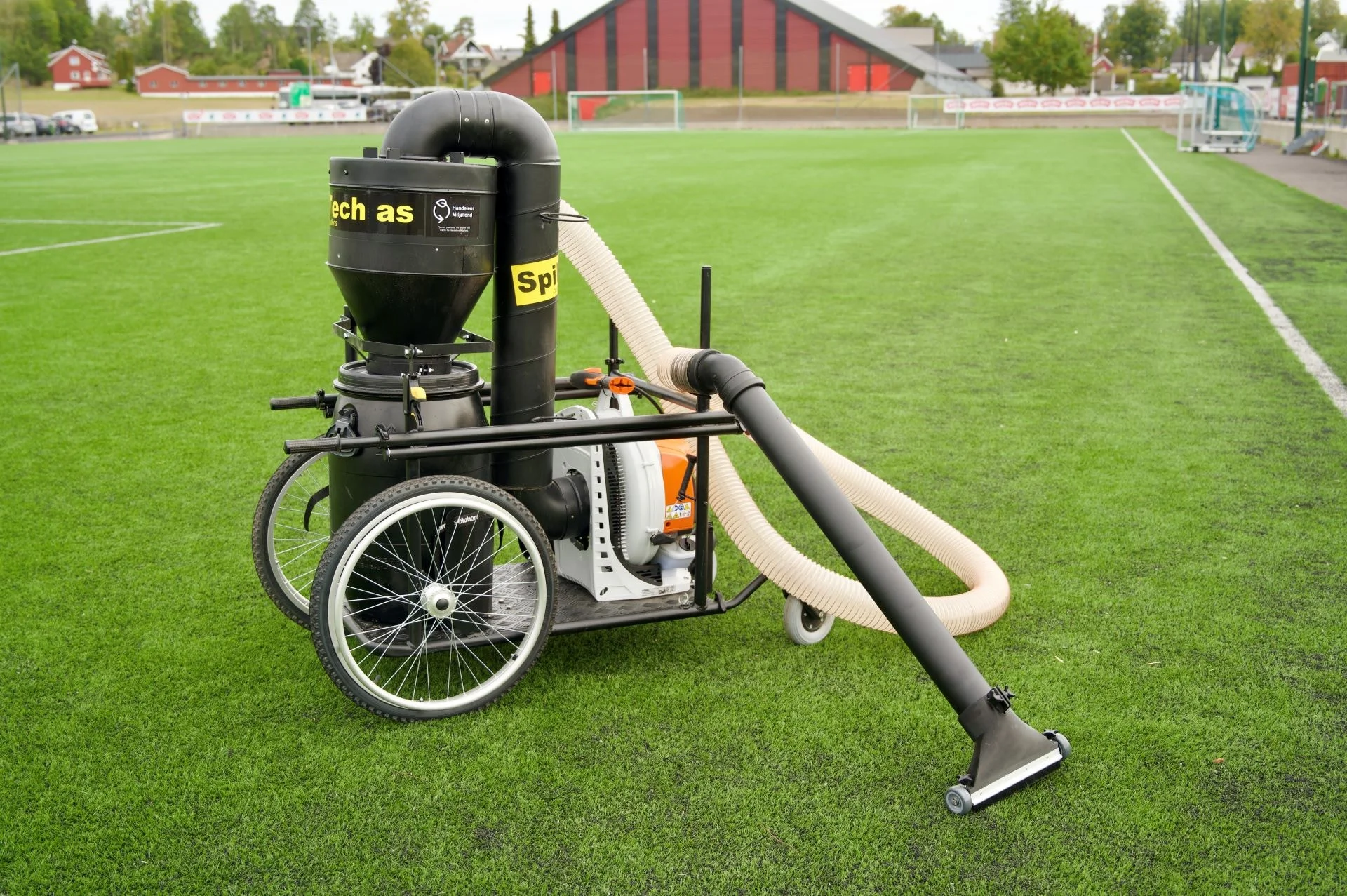

PortBin ShoreCleaner

Specifications

ShoreCleaner vacuums up plastic pellets, styrofoam, cigarette butts and other small litter from shorelines and hard-to-reach places. High airflow and an efficient cyclone with no filter mean it handles wet and dirty material. It can be carried over rough terrain and fits in small work boats.

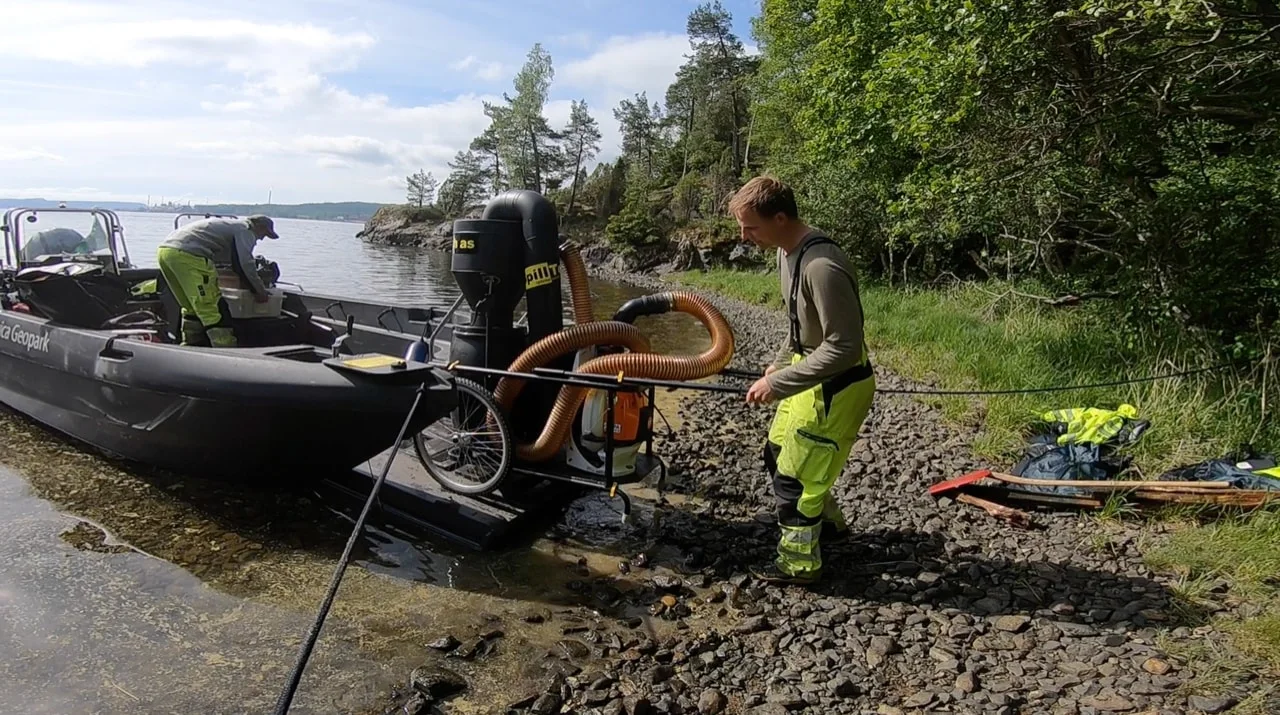

Shoreline version

For nurdles, plastic pellets, crumbled styrofoam, wax, oily bark, bio carriers and dissolving rope.

Engine: 3.2 kW four-stroke Stihl
Container: 60 L
Weight (empty): 50 kg
Wheels: 24″, four telescopic handles
Safety: Level control with strobe and auto shut-off

Rubber and urban version

An adapted version that stops rubber granules from artificial turf from reaching nature. Also picks up cigarette butts, snus pouches, syringes and broken glass in urban areas.
